Descripción

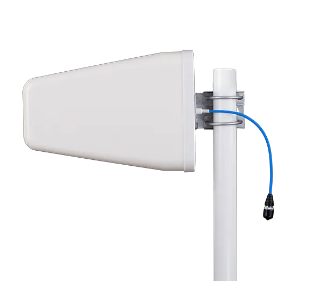

Antena SYSCELL SYS-AYG2 Yagui Randomiazada
| Electrical Specifications | ||||
| Frequency Range(MHz) | 617-698 | 698-960 | 1710-2700 | 3300-3800 |
| Gain(dBi) | 6.0 | 8.0 | 9.0 | 9.5 |
| VSWR | ≤2.0 | ≤2.0 | ≤1.8 | ≤1.8 |
| Polarization | Vertical | |||
| PIM, 3rd Order, 2x20W( dBc) | ≤-140 | ≤-140 | -150 | -153 | ||
| Front to Back Ratio(dB) | ≥15 | |||
| Horizontal Beam width | 105° | 95° | 78° | 59° |
| Vertical Beam width | 87° | 68° | 56° | 48° |
| Input Impedance | 50 Ω | |||
| Max. Input Power | 50 W | |||
| Lightning Protection | DC Ground | |||
| Mechanical Specifications | ||||
| Connector | N| 4.3-10 Female | |||
| Dimensions(mm) | 294x210x65 | |||
| Weight(kg) | 0.87 | |||
| Radome Material | ABS | |||
| Rated Wind Velocity | 210 km/h | |||
| Operating Temperature | -40°C to +65 °C | |||
| Mounting Pole | Ø38-Ø52 mm | |||
